ULTRA-LOW OHM JUMPER RESISTOR (LRJ SERIES)
1206 / 2010

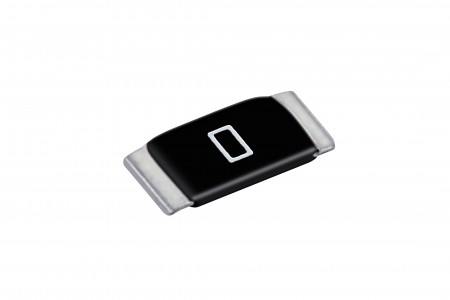

Ultra-Low Chip Resistor Jumper - LRJ Series

Derating Curve
Derating Curve

Metal 0 ohm jumper resistor for under 0.5mohm, withstand high temperature. Low TCR for stable resistance drift through high temp. high current application.

Features

  • Ultra-Low resistance values Max. 0.5 mΩ.
  • High current application.
  • Pb Free.

Applications

  • NB
  • Mobil Device
  • Server
  • Electrical tools
  • Power Management

Construction

Ultra-Low Chip Resistor Jumper - LRJ Series Construction

Part Numbering

Ultra-Low Chip Resistor Jumper - LRJ Series Part Numbering

Standard Electrical Specifications

Item
Type		 Operating Temp. Range Resistance Range (mΩ) Rated Current (A)
LRJ02 (0402) -55 ~ +155°C 0.5 mΩ Max. 20
LRJ06 (1206) -55 ~ +155°C 0.2 mΩ Max. 50
LRJ10 (2010) -55 ~ +155°C

Files Download
RoHS Report
