Metal Oxide Film Leaded Resistor - MOF Series

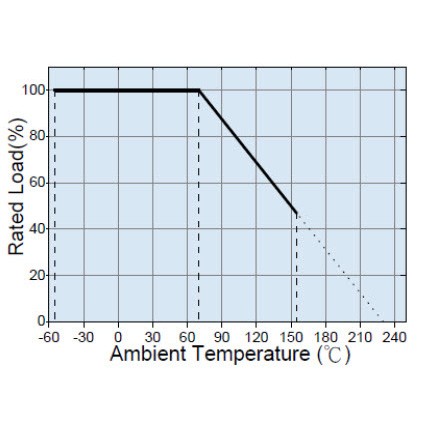

Derating Curve

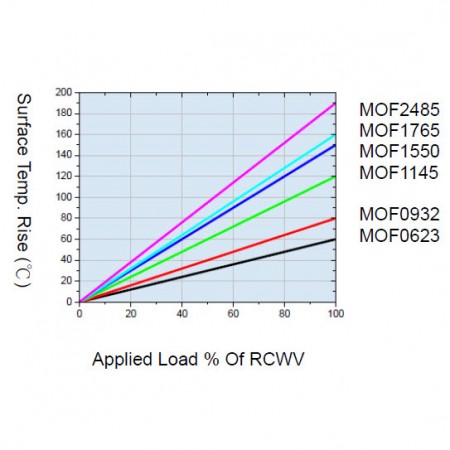

Hot-Spot Temperature
Metal oxide film leaded resistor with excellent long time stability , high surge and overlad capability, good controlled termperature coefficient for teclectommunication and medical.
Features
- Excellent Long-Time stability.
- High surge / overload capability.
- Wide resistance range : 0.1Ω~22MΩ.
- Controlled temperature coefficient.
- Resistance standard tolerance: ±5% (consult factory for ±2%, 1%).
- Electrical and mechanical stability and high reliability.
Applications
- Telecommunication
- Medical Equipment
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C |
Operating Temp. Range |
Max. Operating Voltage |
Max. Overload Voltage |
Dielectric Withstanding Voltage |
Resistance Range | TCR (PPM/°C) |
||
|---|---|---|---|---|---|---|---|---|---|
| ±1% | ±2% | ±5% | |||||||
| 0623 | 1/4W | -55 ~ +235°C | 200V | 350V | 350V | 0.1Ω - 10MΩ | 0.1Ω-22MΩ | ±200 | |
| 0932 | 1/2W | 250V | 400V | 350V | 0.1Ω - 10MΩ | 0.1Ω-22MΩ | |||
| 1145 | 1W | 500V | 600V | 500V | 0.1Ω - 10MΩ | 0.1Ω-22MΩ | |||
| 1550 | 2W | 550V | 600V | 500V | 0.1Ω - 10MΩ | 0.1Ω-22MΩ | |||
| 1765 | 3W | 800V | 1000V | 750V | 0.1Ω – 470KΩ | 0.1Ω – 560KΩ | 0.1Ω - 1MΩ | ||
| 2485 | 5W | 1000V | 1000V | 750V | 0.1Ω – 470KΩ | 0.1Ω – 560KΩ | 0.1Ω - 1MΩ | ||
