Metal Glazed Leaded Resistor - MGR Series

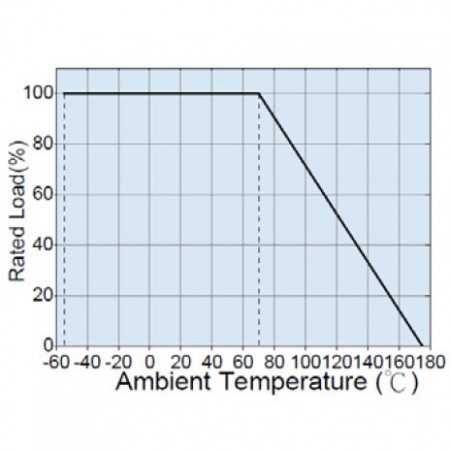

Derating Curve

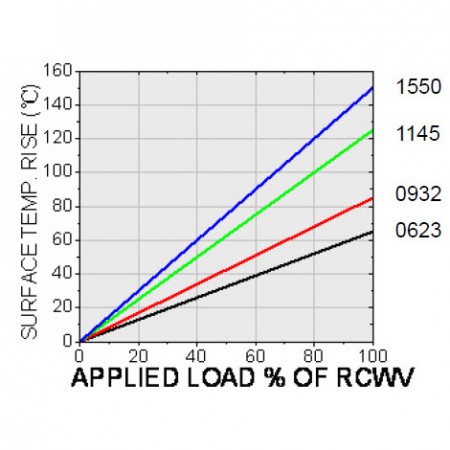

Surface Temp Rise
Metal glazed leaded resistor , coat insulated megohm fixed resistor, high voltage and excellent surge performance.
Scope
- Coat-Insulated megohm fixed resistors (Metal Glazed)
- High voltage surge resistors
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C |
Operating Temp. Range |
Max. Working Voltage |
Max. Overload Voltage |
Dielectric Withstanding Voltage |
Resistance Range | TCR (PPM/°C) |
Measured | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Silicone Risin | Epoxy Risin | ±1% | ±2% | ±5% | |||||||
| 0623 | 1/4W | -55 ~ +175°C | DC1600V AC1150V |
DC2000V AC1500V |
400V | 500V | 10KΩ~100MΩ | 1KΩ~100MΩ | ±100 | DC100V 1KΩ≦R<1 MΩ DC1000V 1 MΩ ≦R |
|
| 101MΩ~1GΩ | ±200 | ||||||||||
| 0932 | 1/2W | DC3500V | 4000V | 500V | 700V | 10KΩ~100MΩ | 1KΩ~100MΩ | ±100 | |||
| 101MΩ~1GΩ | ±200 | ||||||||||
| 1145 | 1W | DC4500V | 5000V | 500V | 1000V | 1KΩ~100MΩ | ±100 | ||||
| 101MΩ~1GΩ | ±200 | ||||||||||
| 1550 | 2W | DC7000V | 14000V | 700V | 1200V | 1KΩ~100MΩ | ±100 | ||||
| 101MΩ~1GΩ | ±200 | ||||||||||
