View MoreMetal Film Flame-Proof Resistor (FMR Series)
0623 / 0932 / 1145 / 1550
Metal Film Flame-Proof Resistors - FMR Series

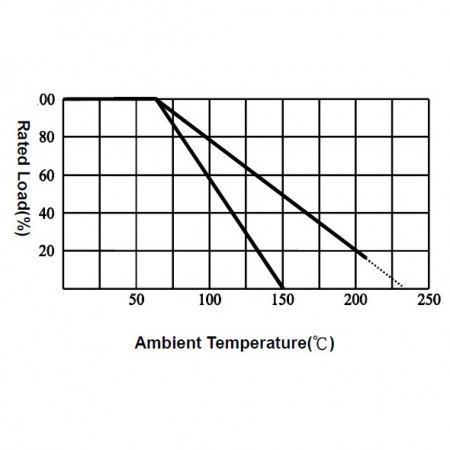

Derating Curve

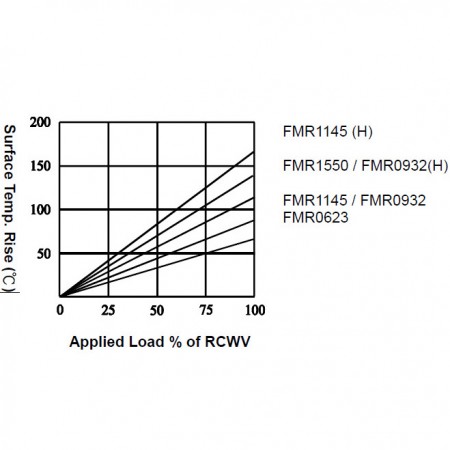

Hot-Spot Temperature
Metal film flame proof resistor , low noise, low TCR and high precision for telecommunication , medical , comsumer products.
Features
- Low Noise.
- Low TCR from ±15～100PPM/℃.
- High Precision from ±0.1%～1%.
- Complete Flameproof Construction UL-1412.
- Coating meets UL94V-0.
Applications
- Telecommunication
- Medical Equipment
- Consumer Product
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C |
Operating Temp. Range |
Max. Working Voltage |
Max. Overload Voltage |
Dielectric Withstanding Voltage |
Resistance Range ≦0.25% E192 |
Resistance Range ≧0.50% E96 |
TCR (±PPM/°C) |
|---|---|---|---|---|---|---|---|---|
| 0623 | 1/4W | -55 ~ +155℃ | 250V | 500V | 400V | 100Ω ~ 100KΩ | 10Ω ~ 1MΩ | ±15 ±25 ±50 ±100 |
| 0932 | 1/2W | 350V | 700V | 500V | ||||
| 1145 | 1W | 450V | 1000V | 750V | ||||
| 1550 | 2W | 500V | 1000V | 750V |
