View MoreHigh Precision Resistor (MFD Series)
0727 / 1040
High Precision Metal Film Leaded Resistor - MFD Series

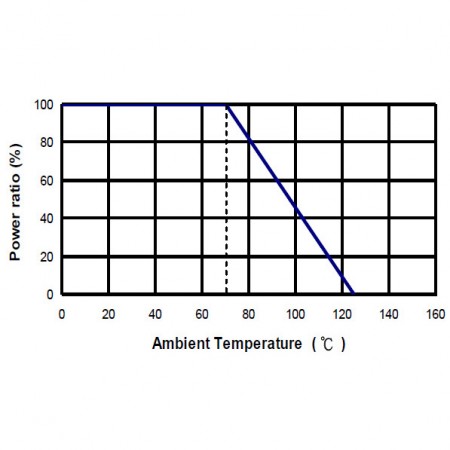

Derating Curve
High precision metal film leaded resistor , very tight tolerance and extremely low TCR for precision high level equipment and measurement etc.
Features
- Very tight tolerance down to ±0.02%.
- Extremely low TCR down to ±5PPM/℃.
- High precision.
- Excellent stability.
Applications
- Precision Equipment
- Measurement Equipment
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating 70°C |
Operating Temp. Range |
Max. Operating Voltage |
Max. Overload Voltage |
Resistance Range | TCR (PPM/°C) |
|||
|---|---|---|---|---|---|---|---|---|---|
| ±0.02% | ±0.05% | ±0.1% | ±1% | ||||||
| 0727 | 1/4W | -55 ~ +125°C | 250V | 500V | 10Ω -500KΩ | ±5 | |||
| 10Ω -1MΩ | ±10 ±15 ±25 |
||||||||
| 1040 | 1/2W | 300V | 600V | 10Ω -500KΩ | ±5 | ||||
| 10Ω -1MΩ | ±10 ±15 ±25 |
||||||||
Operating Voltage=√(P*R) or Max. operating voltage listed above, whichever is lower.
Overload Voltage=2.5*√(P*R) or Max. overload voltage listed above, whichever is lower.
