Anti-Sulfurated Thick Film Chip Resistor - AS Series

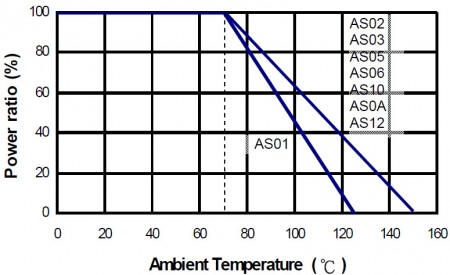

Derating Curve
Anti-sulfurated thick film resistor, special construction to prevent in a sulfur contining environment.
Scope
- This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.
Features
- Special construction to prevent sulfuration in a sulfur containing environment.
Applications
- High-end Computer
- Industrial Equipment
- Automatic Equipment Controller
- Medical Equipment
- High-end Multimedia Electronics
- Outdoor Electronic Applications
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C Jumper Rated Current |
Operating Temp. Range |
Max. Operating Voltage |
Max. Overload Voltage |
Resistance Range | TCR (PPM/°C) |
||
|---|---|---|---|---|---|---|---|---|
| ±0.5% | ±1% | ±5% | ||||||
| AS01 (0201) | 1/20W | -55 ~ +125°C | 25V | 50V | - | 1Ω - 10MΩ | ±200 | |
| Jumper: 1A | - | 0Ω (<50mΩ) | - | |||||
| AS02 (0402) | 1/16W | -55 ~ +155°C | 50V | 100V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
||
| Jumper: 1A | 0Ω (<50mΩ) | - | ||||||
| AS03 (0603) | 1/10W | 50V | 100V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
|||
| Jumper: 1A | 0Ω (<50mΩ) | - | ||||||
| AS05 (0805) | 1/8W | 150V | 300V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
|||
| Jumper: 2A | 0Ω (<50mΩ) | - | ||||||
| AS06 (1206) | 1/4W | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
|||
| Jumper: 2A | 0Ω (<50mΩ) | - | ||||||
| AS10 (1210) | 1/3W | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
|||
| Jumper: 2.5A | 0Ω (<50mΩ) | - | ||||||
| AS0A (2010) | 3/4W | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
|||
| Jumper: 3.5A | 0Ω (<50mΩ) | - | ||||||
| AS12 (2512) | 1W | 250V | 500V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
|||
| Jumper: 4A | 0Ω (<50mΩ) | - | ||||||
