High Voltage Thick Film Chip Resistor - HVR Series

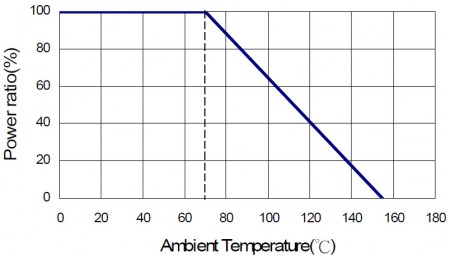

Derating Curve
Derating Curve

High voltage chip resistor to withstand long term high voltage , highly reliable , excellent performance at high voltage.

Scope

  • This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.

Features

  • Highly reliable multilayer electrode construction.
  • Higher component and equipment reliability.
  • Excellent performance at high voltage.
  • Reduced size of final equipment.
  • IEC 62368-1 & IEC 60950-1 Safety Certificate issued by UL Demko

Applications

  • Inverter
  • Outdoor Equipments
  • Converter
  • Automotive Industry
  • High Pulse Equipment

Construction

High Voltage Thick Film Chip Resistor - HVR Series Construction

Part Numbering

High Voltage Thick Film Chip Resistor - HVR Series Part Numbering

Standard Electrical Specifications

Item
Type		 Power Rating
at 70°C		 Operating Temp.
Range		 Max.
Operating Voltage		 Max.
Overload Voltage		 Resistance Range TCR
(PPM/°C)
±1%(E24、E96) ±5%(E24)
HVR02 (0402) 1/16W -55 ~ +155°C 100V 200V 39KΩ - 1MΩ ±100
1.02MΩ - 10MΩ 1.1MΩ - 20MΩ ±200
- 22MΩ - 100MΩ ±400
HVR03 (0603) 1/10W 200V 400V 56KΩ - 1MΩ ±100
1.02MΩ - 10MΩ 1.1MΩ - 20MΩ ±200
- 22MΩ - 100MΩ ±400
HVR05 (0805) 1/8W 400V 800V 100KΩ - 1MΩ ±100
1.02MΩ - 10MΩ 1.1MΩ - 20MΩ ±200
- 22MΩ - 100MΩ ±400
HVR06 (1206) 1/4W 500V 1000V 100KΩ- 1MΩ ±100
1.02MΩ - 10MΩ 1.1MΩ - 20MΩ ±200
- 22MΩ - 100MΩ ±400
HVR0A (2010) 1/2W 2000V 3000V 51KΩ- 1MΩ ±100
1.02MΩ - 20MΩ 1.1MΩ - 20MΩ ±200
- 22MΩ - 100MΩ ±400
HVR12 (2512) 1W 3000V 4000V 30KΩ - 1MΩ ±100
1.02MΩ - 20MΩ 1.1MΩ - 20MΩ ±200
- 22MΩ - 100MΩ ±400
