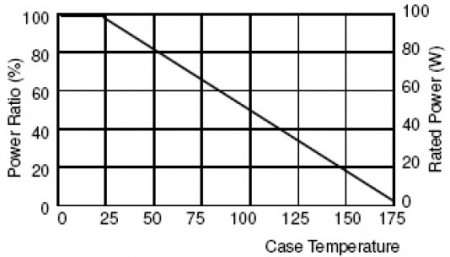

Derating Curve
Derating Curve

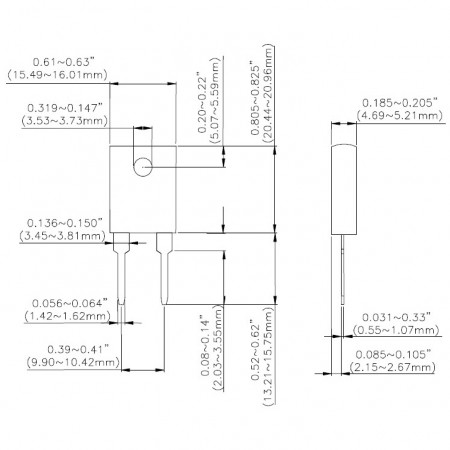

TO-247 Power Resistors-TR100 Series Dimensions
TO-247 Power Resistors-TR100 Series Dimensions

High power resistor, thick film with packaged TO247 applicaions are for switching power supply and snubbers circuit, automated machine controller, RF power amplifier, low energy pulse loading , UPS, voltage regulation , bleeder resistor.

Features

  • 100 watts at 25°C case temperature heat sink mounted.
  • TO-247 style power package.
  • Single M3 screw mounting to heat sink.
  • Molded case for protection and easy to mount.
  • Electrically isolated case.
  • Non–Inductive design.

Applications

  • Gate Resistors in Power Supplies
  • Snubbers
  • Load and Dumping Resistors in CRT Monitors
  • Terminal Resistance in RF Power Amplifiers
  • Voltage Regulation
  • Low Ener

Construction

TO-247 Power Resistors - TR100 Series Construction

Part Numbering

TO-247 Power Resistors - TR100 Series Part Numbering
