TR50-H

TO-220 Power Resistor - TR50-H Series

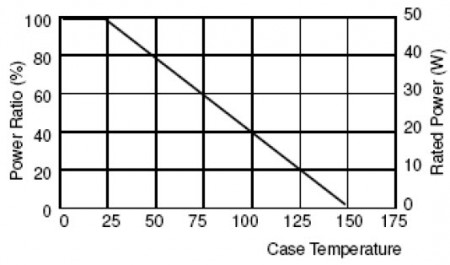

Derating Curve
Derating Curve

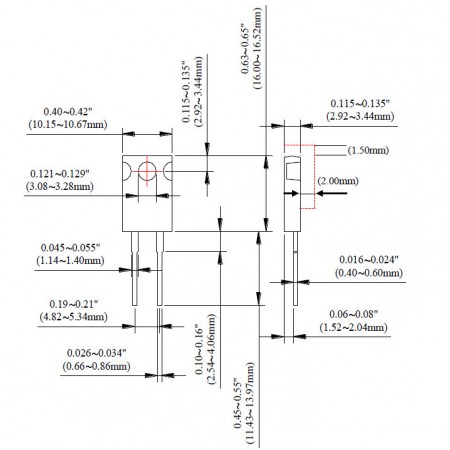

TO-220 Power Resistor - TR50-H Series Dimensions
TO-220 Power Resistor - TR50-H Series Dimensions

High power resistor, thick film with packaged TO220. applicaions are for switching power supply and snubbers circuit, automated machine controller, RF power amplifier, low energy pulse loading , UPS, voltage regulation , bleeder resistor.

Features

  • 50 watts at ≦25°C case temperature heat sink mounted.
  • TO-220 style power package.
  • Fixed with a M3 screw on system heat sink.
  • Improve the heat dissipation by ceramic exposure design with external fix jig to mount the chip on heat sink.

Applications

  • Power Supplies
  • Non-inductive Design for High Frequency
  • Pulsing Applications

Construction

TO-220 Power Resistor - TR50-H Series Construction

Part Numbering

TO-220 Power Resistor - TR50-H Series Part Numbering

Files Download
RoHS Report
