Thick Film Resistor (CR..A Series)

RESISTOR ARRAY (CN..A SERIES)

Automotive Grade Chip Resistor - CR..A Series
Files Download

0402X4 / 0603X4 / 0201X2 (FLAT) / 0201X4 (FLAT)

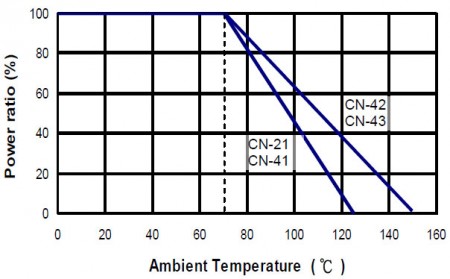

Derating Curve
Derating Curve

Automotive grade resistor array with AEC-Q200 qualified to meet automotive industrial standard. Advanced level for very critical design.

Scope

  • This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.

Features

  • AEC-Q200 Compliance.
  • Small size and light weight.
  • Reduction of assembly costs and matching with placement machines.
  • Reliability, high quality.
  • Suitable for IR reflow soldering.

Applications

  • Entertainment.
  • Computer & Related Products.
  • Communication Equipment.
  • Power Equipment.
  • Measuring Instrument.

Construction

Resistor Array - CN Series Construction

Part Numbering

Resistor Array (CN) Part Numbering

Standard Electrical Specifications

Item
Type		 Power Rating at 70°C Jumper Rated Current Operating Temp. Range Max. Operating Voltage Max. Overload Voltage Number Of Resistors Resistance Range TCR
(PPM/°C)
± 1% ± 5%
CN-21 1/32W -55 ~ +125°C 12.5V 25V 2 - 3Ω – 9.1Ω ± 300
10Ω - 1MΩ ± 200
Jumper: 0.5A 0Ω (<50mΩ) -
CN-41 1/32W -55 ~ +125°C 12.5V 25V 2 10Ω - 1MΩ ± 200
Jumper: 0.5A 0Ω (<50mΩ) -
CN-42 1/16W -55 ~ +155°C 25V 50V 4 10Ω - 1MΩ 1Ω - 1MΩ ± 200
Jumper: 1A 0Ω (<50mΩ) -
CN-43 1/10W -55 ~ +155°C 50V 100V 4 10Ω - 1MΩ 1Ω - 1MΩ ± 200
Jumper: 1A 0Ω (<50mΩ) -

Operating Voltage = √(P x R) or Max. operating voltage listed above, whichever is lower.
Overload Voltage = 2.5 x √(P x R) or Max. overload voltage listed above, whichever is lower.
■ Helisto is capable of manufacturing the optional spec based on customer's requirement.
