Automotive Grade Current Sensing Chip Resistor - CS..A Series

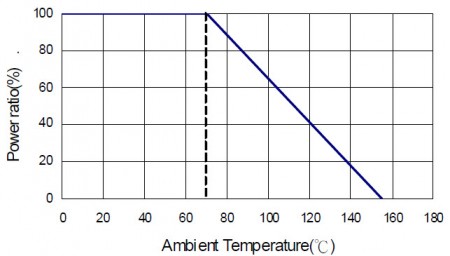

Derating Curve
Derating Curve

Automotive grade current sensing resistor with AEC-Q200 qualified to meet automotive industrial standard. Advanced level with anti-sulfur for very critical environment.

Features

  • AEC-Q200 Compliance.
  • Highly reliable multilayer electrode construction.
  • Reduced size of final equipment reliability.
  • 3 Watts power rating in 1 Watt size, 1225 package.
  • Low TCR of ± 100 PPM/°C.
  • Resistance values from 1m to 1 ohm.
  • High purity alumina substrate for high power dissipation.
  • Long side terminations with higher power rating.
  • Special construction to prevent sulfuration in a sulfur containing environment.
  • RoHS Compliance.

Applications

  • Automotive Industry.
  • Power Management Applications.
  • Switching Power Supply.
  • Over Current Protection in Audio Applications.
  • Voltage Regulation Module (VRM).
  • DC-DC Converter, Battery Pack, Charger, Adaptor.
  • Automotive Engine Control.
  • Disk Driver.

Construction

Thick Film Low TC Current Sensing Resistor - CS Series Construction

Part Numbering

Thick Film Low TC Current Sensing Resistor - CS--A Series Part Numbering

Standard Electrical Specifications

Item
Type		 Power Rating at 70°C Operating Temp. Range Max. Operating Current Resistance Range (mΩ) TCR (PPM/°C)
± 1% ± 2% ± 5%
CS02 (0402) 1/16W -55 ~ +155°C 1.11A 50 - 100
102 - 500
510 - 1000		 ± 400
± 300
± 200
CS03 (0603) 1/10W 2.23A 20 - 50
51 - 100
102 - 500
510 - 1000		 ± 600
± 400
± 300
± 200
CS05 (0805) 1/8W 2.50A 20 - 50
51 - 100
102 - 196
200 - 1000		 ± 600
± 400
± 300
± 200
CS06 (1206) 1/4W 5.00A 10 - 20
21 - 50
51 - 91
100 - 1000

± 600
± 400
± 300
± 200
CS13 (1210) 1/2W 7.07A
CS10 (2010) 3/4W 8.66A
CS12 (2512) 1W 10.0A
CS25 (1225) 3W 31.6A 3 - 5
6 - 20
21 - 30
33 - 8000		 ± 300
± 200
± 150
± 100
CS37 (3720) 1W 10.0A 10 - 18
20 - 500		 ± 300
± 150
CS75 (7520) 2W 44.7A - 1 - 4 ± 300
5 - 10
11 - 350		 ± 200
± 150
