TR50

TO-220 Power Resistor - TR50 Series

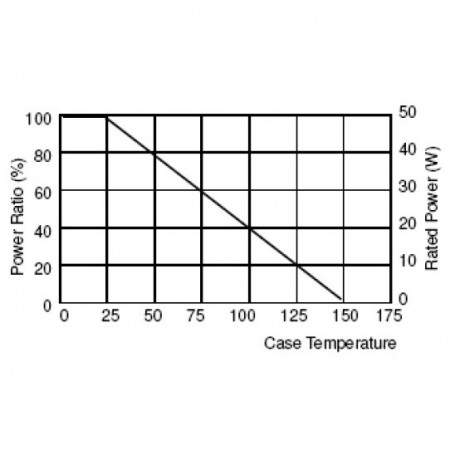

Derating Curve
Derating Curve

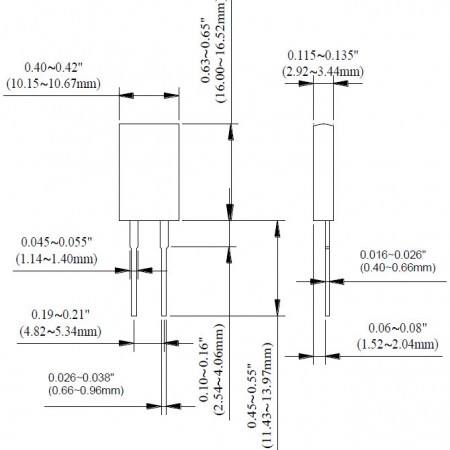

TO-220 Power Resistor - TR50 Series Dimensions
TO-220 Power Resistor - TR50 Series Dimensions

High power resistor, thick film with packaged TO220. applicaions are for switching power supply and snubbers circuit, automated machine controller, RF power amplifier, low energy pulse loading , UPS, voltage regulation , bleeder resistor.

Features

  • 50 watts at 25°C case temperature heat sink mounted.
  • TO-220 style power package.
  • Molded case for protection and easy to mount.
  • Electrically isolated case.
  • Non-Inductive design.

Applications

  • Switching Power Supplies
  • Non-inductive Design for High Frequency
  • Pulsing Applications
  • UPS
  • Voltage Regulation

Construction

TO-220 Power Resistor - TR50 Series Construction

Part Numbering

TO-220 Power Resistor - TR50 Series Part Numbering

Files Download
RoHS Report
