TR30

TO-220 Power Resistor - TR30 Series

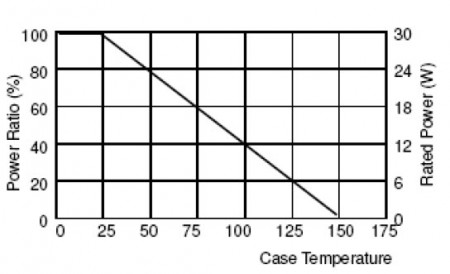

Derating Curve
Derating Curve

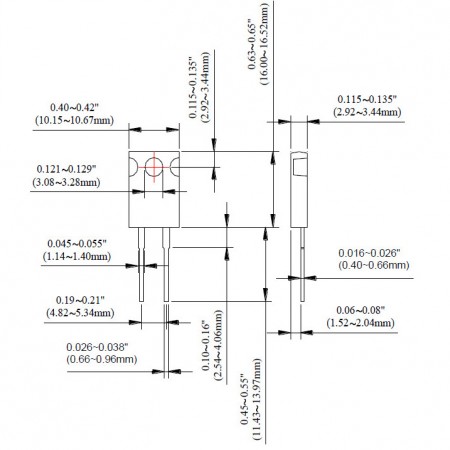

TO-220 Power Resistor - TR30 Series Dimensions
TO-220 Power Resistor - TR30 Series Dimensions

High power resistor, thick film with packaged TO220. applicaions are switching power supply and snubbers circuit, automated machine controller, RF power amplifier, low energy pulse loading , UPS, voltage regulation , bleeder resistor.

Features

  • 30 watts at 25°C case temperature heat sink mounted.
  • TO-220 style power package.
  • Single screw mounting to heat sink.
  • Molded case for protection and easy to mount.
  • Electrically isolated case.
  • Non–Inductive design.

Applications

  • Gate Resistors in Power Supplies
  • Snubbers
  • Load and Dumping Resistors in CRT Monitors
  • Terminal Resistance in RF Power Amplifiers
  • Voltage Regulation
  • Low Energy Pulse Loading
  • UPS

Construction

TO-220 Power Resistor - TR30 Series Construction

Part Numbering

TO-220 Power Resistor - TR30 Series Part Numbering

Files Download
RoHS Report
