Ultra Low Ohm (Metal Strip) Chip Resistor - LR Series

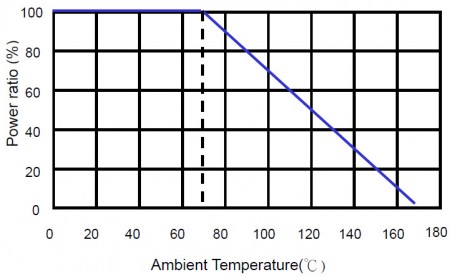

Derating Curve
Metal strip ultra low ohm resistor for sensing large current , withstand high temperature. Low TCR for stable resistance drift through high temp.
Features
- High power rating up to 3 Watts.
- Low TCR down to ±50 PPM/°C.
- Resistance values from 0.5m to 10m ohm.
- Customized resistance available.
- Wide range package sizes 1206 / 2010 / 2512.
- AEC-Q200 Compliance (only LR12 Black).
Applications
- NB (for Power Management)
- MB (for Power Management)
- SWPS (DC-DC Converter, Charger, Adaptor)
- Monitor (for Power Management)
Construction
Part Numbering
Standard Electrical Specifications
| Item Part No. |
Power Rating at 70°C |
Operating Temp. Range | Resistance Range (mΩ) | TCR (PPM/°C) |
||
|---|---|---|---|---|---|---|
| ±1% | ±3% | ±5% | ||||
| LR06□TF0M50 | 1W | -55°C ~ +170°C | 0.5 | ±200 | ||
| LR06□TD□□□□ | 1W | 0.75 - 10 | ±50 | |||
| LR12□TD□□□□ | 1W | 0.5, 0.75, 1, 1.5, 2 | ±50 | |||
| LR12□TW□□□□ | 1W | 6, 6.5, 7 | ±75 | |||
| LR12□TE□□□□ | 1W | 4, 5, 10 | ±100 | |||
| LR12□TK□□□□ | 1W | 2.5, 3 | ±150 | |||
