View MoreCarbon Film Resistor (CFS Series)
0204 / 0207 / 0309
Carbon Film Resistor - CFS Series
None-leaded , SMD carbon resistor , Cylindrical design ,high solderability ,good strength of electrodes, lower current noise ,suitlab for reflow , flow and iron soldering for teclecommunication , medical , consumer.
Features

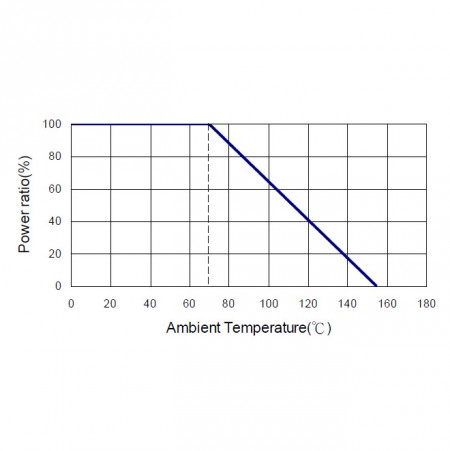

Derating Curve
- SMD style carbon resistor.
- Free direction for mounting due to cylindrical design.
- High solder ability due to specially plated electrodes.
- Electrodes strength is higher than flat chip resistors.
- Lower current noise than thick film flat chip resistors.
- Suitable for reflow, flow and iron soldering.
Applications
- Telecommunication
- Medical Equipment
- Consumer Product
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C |
Operating Temp. Range |
Max. Operating Voltage |
Max. Overload Voltage |
Resistance Range | |
|---|---|---|---|---|---|---|
| ±2% | ±5% | |||||
| 0204 | 1/4W | -55 ~ +155°C | 200V | 400V | 1Ω - 1MΩ | |
| 0207 | 1/2W | 300V | 600V | 1Ω - 1MΩ | ||
| 0309 | 1W | 350V | 700V | 1Ω - 1MΩ | ||
