View MoreCarbon Film Leaded Resistor (CFR Series)
0318 / 0623 / 0932 / 1145 / 1550
Carbon Film Leaded Resistor - CFR Series

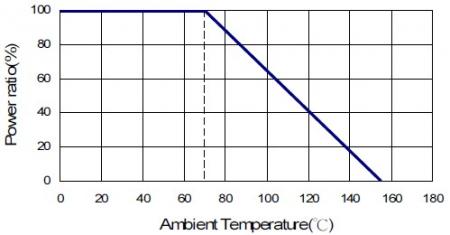

Derating Curve
Hot-Spot Temperature
Carbon film leaded resistor with excellent long time stability ,good controlled termperature coefficient for teclectommunication and medical.
Features
- The most economic industrial investment.
- Standard tolerance: ±5% (available ±2%).
- Excellent long term stability.
- Termination: Standard solder-plated copper lead.
Applications
- Telecommunication
- Medical Equipment
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C |
Operating Temp. Range |
Max. Working Voltage |
Max. Overload Voltage |
Dielectric Withstanding Voltage |
Resistance Range | |
|---|---|---|---|---|---|---|---|
| ±2% | ±5% | ||||||
| 0318 | 1/8W | -55 ~ +155°C | 150V | 300V | 300V | 1Ω - 10MΩ | 0.1Ω-22MΩ |
| 0623 | 1/4W | 250V | 500V | 500V | 1Ω - 10MΩ | 0.1Ω-22MΩ | |
| 0932 | 1/2W | 350V | 700V | 70V | 1Ω - 10MΩ | 0.1Ω-22MΩ | |
| 1145 | 1W | 450V | 1000V | 1000V | 1Ω - 10MΩ | 0.1Ω-22MΩ | |
| 1550 | 2W | 500V | 1000V | 1000V | 1Ω - 10MΩ | 0.1Ω-22MΩ | |
