Trimmable Thick Film Chip Resistor - RT Series

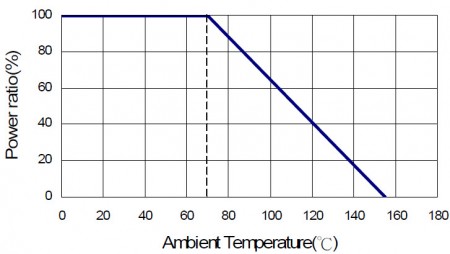

Derating Curve
Flexiable trimmable resistor for speical requirement. Suitable for laser fine tune.
Scope
- This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.
Features
- Suitable for laser fine tune.
- Small size and light weight.
- Highly reliable multilayer electrode construction.
- Compatible with all soldering process.
Applications
- Tuner
- Sensor Control Circuit
- Camcorder
- Portable Audio
- Photo Sensor
- Portable Measuring Equipment
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C |
Operating Temp. Range |
Max. Operating Voltage |
Max. Overload Voltage |
Resistance Range | TCR (PPM/°C) |
||
|---|---|---|---|---|---|---|---|---|
| 0~-10% | 0~-20% | 0~-30% | ||||||
| RT-02 (0402) | 1/16W | -55 ~ +155°C | 50V | 100V | 1Ω - 10MΩ | ±200 | ||
| RT-03 (0603) | 1/10W | 50V | 100V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 10MΩ |
±200 ±100 ±200 |
|||
| RT-05 (0805) | 1/8W | 150V | 300V | |||||
| RT-06 (1206) | 1/4W | 200V | 400V | |||||
| RT-10 (1210) | 1/3W | 200V | 400V | |||||
| RT-0A (2010) | 3/4W | 200V | 400V | |||||
| RT-12 (2512) | 1W | 250V | 500V | |||||
Operating Voltage=√(P*R) or Max. operating voltage listed above, whichever is lower.
Overload Voltage=2.5*√(P*R) or Max. overload voltage listed above, whichever is lower.
☑ Helisto is capable of manufacturing the optional spec based on customer's requirement.
