Thin Film Current Sensing Chip Resistor - TCS Series

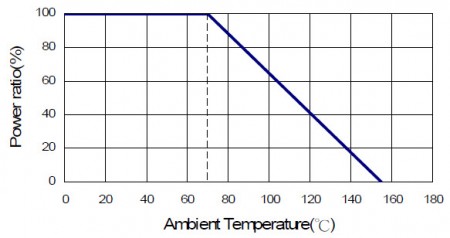

Derating Curve
Derating Curve

Thin film , precision current sensing resistor with very low TC.

Features

  • Thin film process.
  • High power rating up to 3 Watts in 2512 size.
  • Tight tolerance down to ±0.5%.
  • Extremely low TCR down to ±50 PPM/°C.
  • Resistance values from 50m to 1ohm.
  • High purity alumina substrate for high power dissipation.

Applications

  • Power Management Applications
  • Switching Power Supply
  • Over Current Protection in Audio Applications
  • Voltage Regulation Module (VRM)
  • DC-DC Converter, Battery Pack, Charger, Adaptor
  • Automotive Engine Control
  • Disk Driver
  • Portable Devices (PDA, Cell Phone)

Construction

Thin Film Current Sensing Chip Resistor - TCS Series Construction

Standard Electrical Specifications

Type Power Rating
at 70°C		 Operating
Temp. Range		 Resistance Range (mΩ) TCR
(PPM/°C)
±0.5% ±1%
TCS02 (0402) 1/16W -55~+155°C 500 - 1000 ±100
±50
TCS03 (0603) 1/10W -55~+155°C 200 - 300
301 - 1000		 ±100
±50
TCS05 (0805) 1/8W 200 - 300
301 - 1000		 ±100
±50
TCS06 (1206) 1/4W -55~+155°C - 50 - 100 ±200
±100
±50
101 - 300
301 - 1000
TCS10 (2010) 3/4W -55~+155°C 50 - 100
101 - 300
301 - 1000		 ±200
±100
±50
TCS12 (2512) 1W -55~+155°C 50 - 100
101 - 300
301 - 1000		 ±200
±100
±50
