Current Sensing Chip Resistor - CS Series

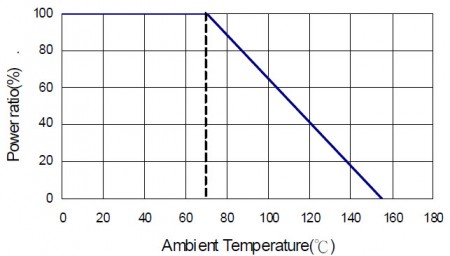

Derating Curve
Derating Curve

High level ,good TCR , high reliability thick film current sensing resistor.

Features

  • 3 Watts power rating in 1 Watt size, 1225 package.
  • Low TCR of ±100 PPM/°C.
  • Resistance values from 1m to 1 ohm.
  • High purity alumina substrate for high power dissipation.
  • Long side terminations with higher power rating.
  • RoHS Compliance.

Applications

  • Power Management Applications
  • Switching Power Supply
  • Over Current Protection in Audio Applications
  • Voltage Regulation Module (VRM)
  • DC-DC Converter, Battery Pack, Charger, Adaptor
  • Automotive Engine Control
  • Disk Driver

Construction

Thin Film Current Sensing Chip Resistor - CS Series Construction

Part Numbering

Thin Film Current Sensing Chip Resistor - CS Series Part Numbering

Standard Electrical Specifications

Item
Type		 Power Rating
at 70°C		 Operating Temp.
Range		 Max. Operating
Current

Resistance Range (mΩ)

 TCR
(PPM/°C)
±1% ±2% ±5%
CS01 (0201) 1/20W -55 ~ +155°C 0.70A 100 - 147
150 - 500
510 - 1000		 ±1000
±600
±300
CS02 (0402) 1/16W 1.11A 50 - 100
102 - 500
510 - 1000		 ±400
±300
±200
CS03 (0603) 1/10W 2.23A 20 - 50
51 - 100
102 - 300
301 - 1000		 ±600
±400
±300
±200
CS05 (0805) 1/8W 2.50A 20 - 50
51 - 100
102 -196
200 - 1000		 ±600
±400
±300
±200
CS06 (1206) 1/4W 5.00A 10 - 20
21 - 50
51 - 91
100 - 1000		 ±600
±400
±300
±200
CS13 (1210) 1/2W 7.07A
CS10 (2010) 3/4W 8.66A
CS12 (2512) 1W 10.0A
CS25 (1225) 3W 31.6A 3 - 5
6 - 20
21 - 30
33 - 8000		 ±300
±200
±150
±100
CS37 (3720) 1W 10.0A 10 - 18
20 - 500		 ±300
±150
CS75 (7520) 2W 44.7A － 1 - 4 ±300
5 - 10
11 - 350		 ±200
±150
CS62 (0612) 1W 10.0A 10 - 27
30 - 91
100 – 499
500 - 1000		 ±600
±300
±200
±100
