Thick Film Resistor (CR..A Series)

THICK FILM RESISTOR (CR..A SERIES)

Automotive Grade Chip Resistor - CR..A Series
Files Download

0201 / 0402 / 0603 / 0805 / 1206 / 1210 / 2010 / 2512

Automotive Grade Chip Resistor - CR..A Series

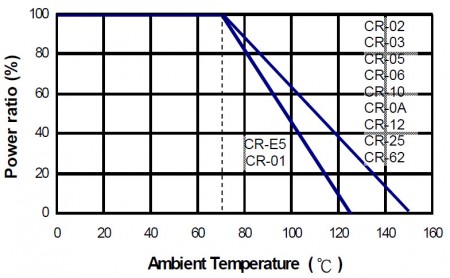

Derating Curve
Derating Curve

Automotive grade resistor with AEC-Q200 qualified to meet automotive industrial standard. Advanced level for more critical design.

Scope

  • This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.

Features

  • AEC-Q200 Compliance.
  • Highly reliable multilayer electrode construction.
  • Compatible with all soldering process.
  • 100% CCD inspection

Applications

  • Automotive Industry.
  • Telecommunication Equipments.
  • Radio and Tape Recorders, TV Tuners.
  • Digital Cameras, Watches, Pocket Calculators.
  • Computers, Instruments.

Construction

Thick Film Resistor - CR Series Construction

Part Numbering

Part Number: CR-03FA7---10R
Thick Film Resistor - CR--A Series Part Numbering

Standard Electrical Specifications

Item
Type		 Power Rating at 70°C Jumper Rated Current Operating Temp. Range Max. Operating Voltage Max. Overload Voltage Resistance Range TCR
(PPM/°C)
± 1% (E24, E96) ± 5% (E24)
CR-01 (0201) 1/20W -55 ~ +125°C 25V 50V 1Ω - 10MΩ ± 200
Jumper: 1A 0Ω (<50mΩ) -
CR-02 (0402) 1/16W -55 ~ +155°C 50V 100V 1Ω - 9.76Ω
10Ω - 1MΩ
1.02MΩ - 10MΩ		 ± 200
± 100
± 200
Jumper: 1A 0Ω (<50mΩ) -
CR-03 (0603) 1/10W -55 ~ +155°C 75V 150V 1Ω - 9.76Ω
10Ω - 1MΩ
1.02MΩ - 10MΩ		 ± 200
± 100
± 200
Jumper: 1A 0Ω (<50mΩ) -
CR-05 (0805) 1/8W -55 ~ +155°C 150V 300V 1Ω - 9.76Ω
10Ω - 1MΩ
1.02MΩ - 10MΩ		 ± 200
± 100
± 200
Jumper: 2A 0Ω (<50mΩ) -
CR-06 (1206) 1/4W -55 ~ +155°C 200V 400V 1Ω - 9.76Ω
10Ω - 1MΩ
1.02MΩ - 10MΩ		 ± 200
± 100
± 200
Jumper: 2A 0Ω (<50mΩ) -
CR-10 (1210) 1/2W -55 ~ +155°C 200V 400V 1Ω - 9.76Ω
10Ω - 1MΩ
1.02MΩ - 10MΩ		 ± 200
± 100
± 200
Jumper: 2.5A 0Ω (<50mΩ) -
CR-0A (2010) 3/4W -55 ~ +155°C 200V 400V 1Ω - 9.76Ω
10Ω - 1MΩ
1.02MΩ - 10MΩ		 ± 200
± 100
± 200
Jumper: 3.5A 0Ω (<50mΩ) -
CR-12 (2512) 1W -55 ~ +155°C 250V 500V 1Ω - 9.76Ω
10Ω - 1MΩ
1.02MΩ - 10MΩ		 ± 200
± 100
± 200
Jumper: 4A 0Ω (<50mΩ) -
