Anti-Corrosive Thin Film Precision Chip Resistor - PR Series

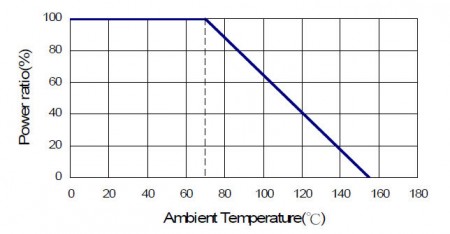

Derating Curve
Thin film high precision resistor, accurate resistor with special passivation meet against the humidity, Advanced level for critical environment.
Features
- Long term life stability and demonstrated the Anti–Corrosion claims.
- Special passivated NiCr film for Anti-Acid and Anti-Damp.
- Tight tolerance down to ±0.1%.
- Extremely low TCR down to ±15 PPM/°C.
- Wide resistance range 10ohm ~ 1.5Mega ohm.
Applications
- High-end Computer
- Industrial Equipment
- Automatic Equipment Controller
- Medical Equipment
- Telecommunication Device
- High-end Multimedia Electronics
- Outdoor Electronic Applications
Construction
Part Numbering
Standard Electrical Specifications
| TYPE | Power Rating at 70°C |
Operating Temp. Range | Max. Operating Voltage | Max. Overload Voltage | Resistance Range | TCR (PPM/°C) |
||
|---|---|---|---|---|---|---|---|---|
| ±0.1% | ±0.25% | ±0.5% | ||||||
| PR02 (0402) | 1/16W | -55 ~ +155°C | 25V | 50V | 49.9Ω - 12KΩ | ±15 | ||
| 24.9Ω - 24.9KΩ | ±25 ±50 |
|||||||
| PR03 (0603) | 1/16W | -55 ~ +155°C | 50V | 100V | 24.9Ω - 332KΩ | ±15 ±25 ±50 |
||
| PR05 (0805) | 1/10W | -55 ~ +155°C | 100V | 200V | 10Ω – 1MΩ | ±15 ±25 ±50 |
||
| PR06 (1206) | 1/8W | -55 ~ +155°C | 150V | 300V | 10Ω – 1MΩ | ±15 ±25 ±50 |
||
| PR10 (2010) | 1/4W | -55 ~ +155°C | 150V | 300V | 24.9Ω - 1MΩ | ±15 | ||
| 10Ω – 1.5MΩ | ±25 ±50 |
|||||||
| PR12 (2512) | 1/2W | -55 ~ +155°C | 150V | 300V | 24.9Ω - 1MΩ | ±15 | ||
| 10Ω – 1.5MΩ | ±25 ±50 |
|||||||
