View MoreGeneral Purpose Thick Film Resistor (CR Series)
01005 / 0201 / 0402 / 0603 / 0805 / 1206 / 1210 / 2010 / 2512 / 1225 / 0612
Thick Film Chip Resistor - CR Series

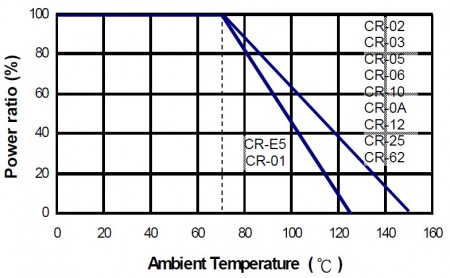

Derating Curve
General purpose thick film resistor , high power, low TCR is available．Wide range resistance from 1ohm to10Mohm, completed size from 0201~2512, special long termination for 1225. Low TC50 and high power are available. General purpose thick film resistor , high power, low TCR is available.
Scope
- This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.
Features
- Small size and light weight.
- Highly reliable multilayer electrode construction.
- Compatible with all soldering process.
- Long side terminations.
Applications
- Telecommunication Equipments
- Radio and Tape Recorders, TV Tuners
- Digital Cameras, Watches, Pocket Calculators
- Computers, Instruments
- Medical and Military Equipment
Construction
Part Numbering
Standard Electrical Specifications
| Item Type |
Power Rating at 70°C Jumper Rated Current |
Operating Temp. Range |
Max. Operating Voltage |
Max. Overload Voltage |
Resistance Range | TCR (PPM/°C) |
|
|---|---|---|---|---|---|---|---|
| ±1%(E24、E96) | ±5%(E24) | ||||||
| CR-E5 (01005) | 1/32W | -55 ~ +125°C | 15V | 30V | 10Ω - 1MΩ | ±300 | |
| Jumper: 0.5A | 0Ω (<50mΩ) | - | |||||
| CR-01 (0201) | 1/20W | -55 ~ +125°C | 25V | 50V | 1Ω - 10MΩ | ±200 | |
| Jumper: 1A | 0Ω (<50mΩ) | - | |||||
| CR-02 (0402) | 1/16W | -55 ~ +155°C | 50V | 100V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ |
±200 ±100 ±200 ±400 |
|
| Jumper: 1A | 0Ω (<50mΩ) | - | |||||
| CR-03 (0603) | 1/10W | -55 ~ +155°C | 75V | 150V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ |
±200 ±100 ±200 ±400 |
|
| Jumper: 1A | 0Ω (<50mΩ) | - | |||||
| CR-05 (0805) | 1/8W | -55 ~ +155°C | 150V | 300V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ |
±200 ±100 ±200 ±400 |
|
| Jumper: 2A | 0Ω (<50mΩ) | - | |||||
| CR-06 (1206) | 1/4W | -55 ~ +155°C | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ |
±200 ±100 ±200 ±400 |
|
| Jumper: 2A | 0Ω (<50mΩ) | - | |||||
| CR-10 (1210) | 1/3W | -55 ~ +155°C | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 39MΩ |
±200 ±100 ±200 ±400 |
|
| Jumper: 2.5A | 0Ω (<50mΩ) | - | |||||
| CR-0A (2010) | 3/4W | -55 ~ +155°C | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ |
±200 ±100 ±200 ±400 |
|
| Jumper: 3.5A | 0Ω (<50mΩ) | - | |||||
| CR-12 (2512) | 1W | -55 ~ +155°C | 250V | 500V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ |
±200 ±100 ±200 ±400 |
|
| Jumper: 4A | 0Ω (<50mΩ) | - | |||||
| CR-25 (1225) | 2W | -55 ~ +155°C | 200V | 400V | 10Ω – 20KΩ | ±100 | |
| Jumper: 10A | 0Ω (<20mΩ) | - | |||||
| CR-62 (0612) | 0.75W | -55 ~ +155°C | 200V | 400V | 1Ω~1MΩ | ±100 | |
